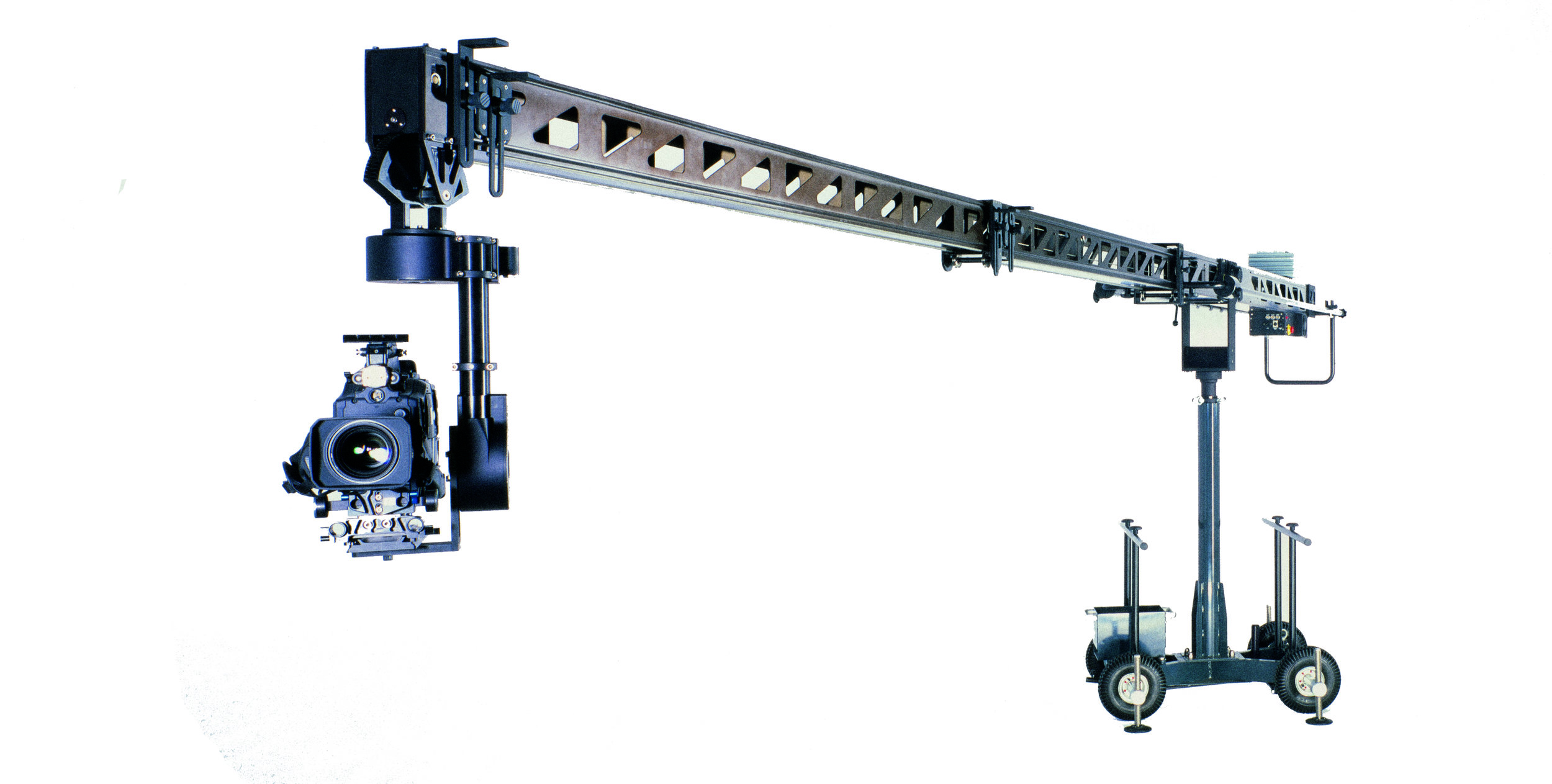

The New Technocrane 22 telescopic range is from 11' to 28' fully extended, with a total 15'6" of traveling distance from the center column.

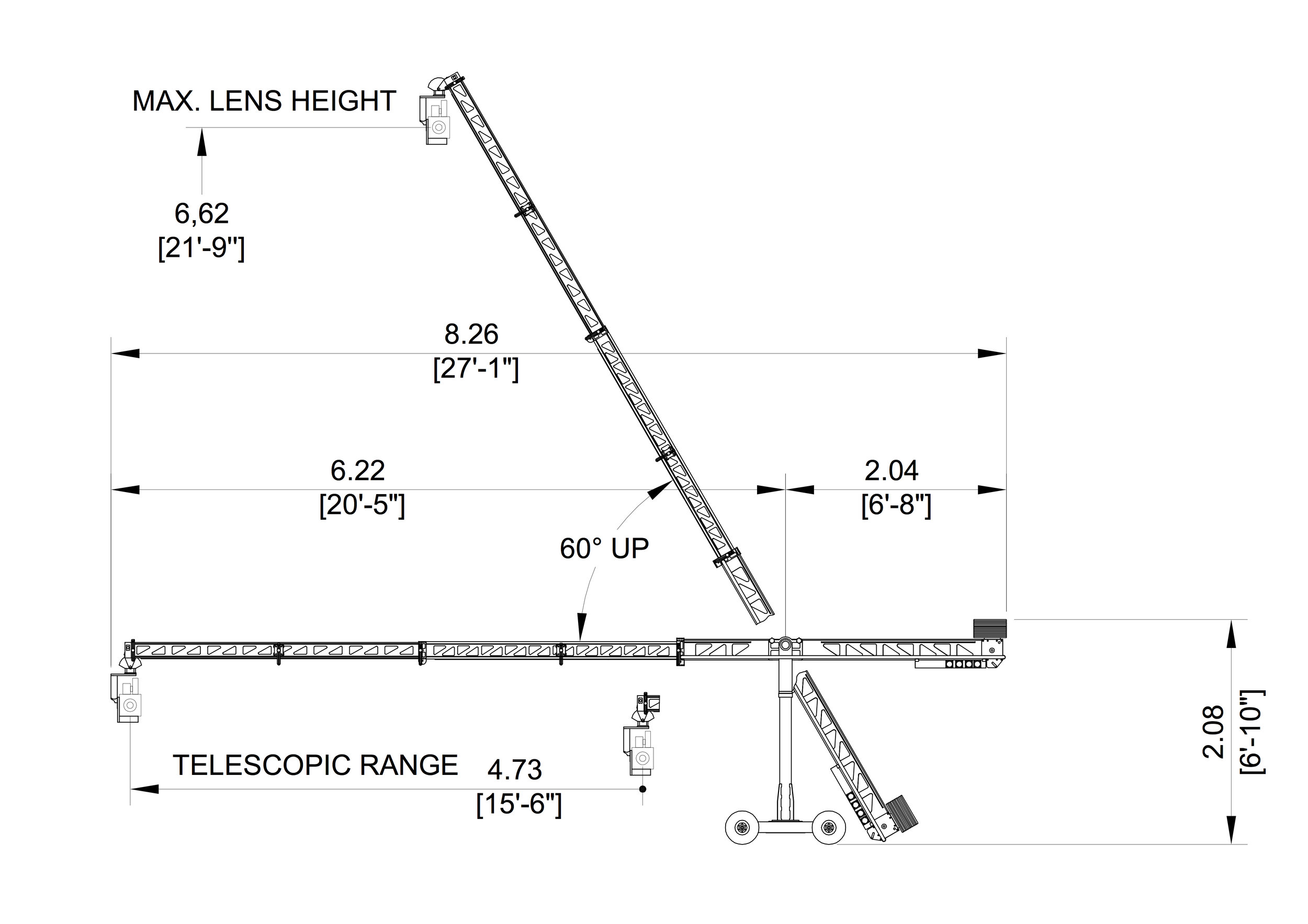

SPECIFICATIONS

TELESCOPIC RANGE 4,73 M (15'6")

FULLY EXTENDED FROM COLUMN 6,22 M (20'5")

FULLY EXTENDED FROM BUCKET 8,26 M (28")

fully retracted from bucket 3,53 m (11'58")

MAX LENS HEIGHT 6,62 M (21'9")

ADJUSTABLE TELESCOPIC SPEED 0-1,5 M/SEC.

ADJUSTABLE FLUIDITY OF TELESCOPIC START AND STOP

DOLLY SIZE 27'5" X 41'5"

weight 89kg
